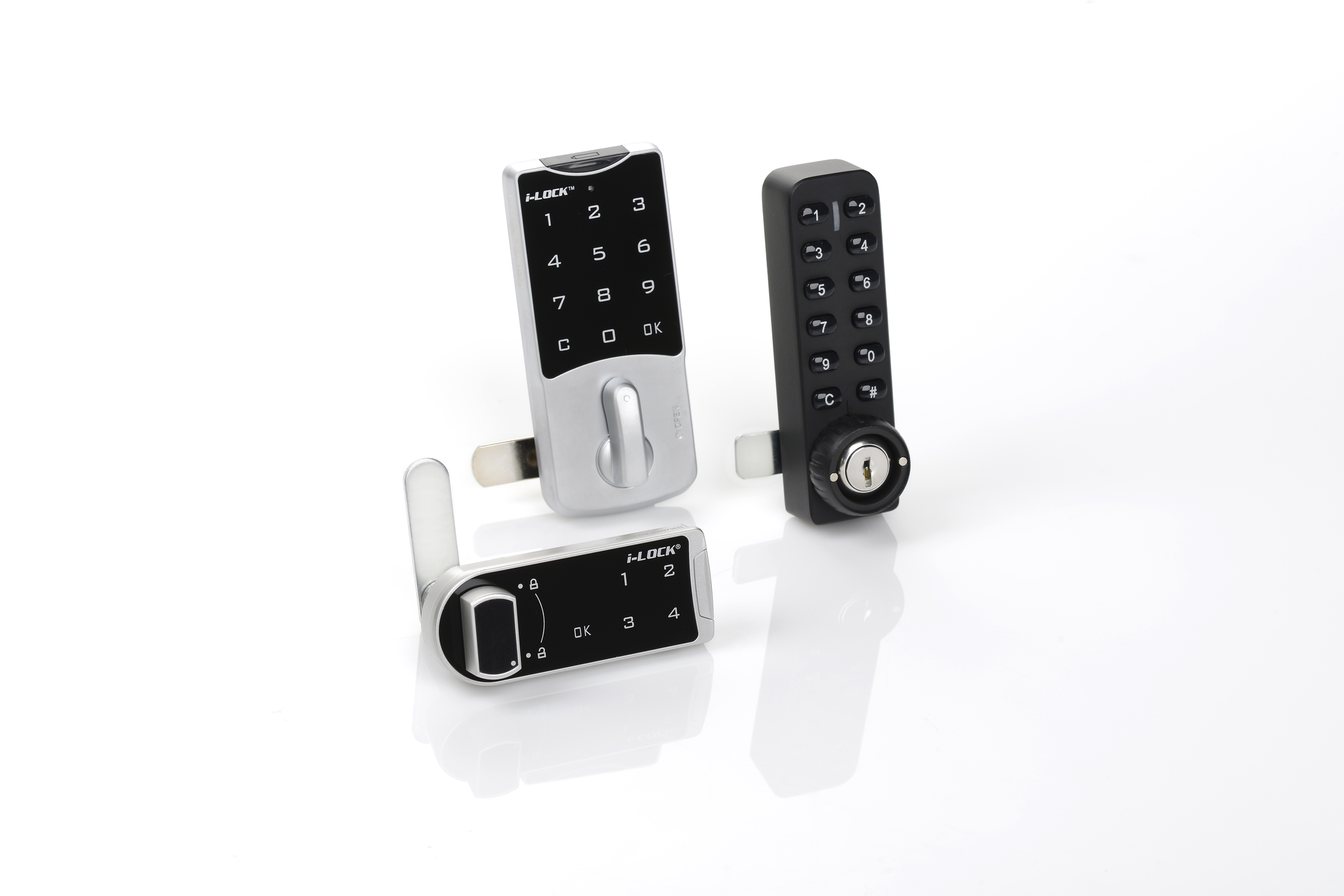

CCL Security Products® introduces the i-Lock® Electronic Cabinet Lock Series. Ideal for new installations and retrofits alike, Models e901, e902, and e903 are all battery operated with the following features and benefits per model:
e901
- 4-button electronic lock with simple touchscreen entry
- Use on metal and wood doors with thickness of 0.6mm-22mm
- Low power consumption with 1 year battery life powered by single button cell
- Made from UV protected ABS material
- 1 to 8 digit PI N code with 87,380 possible codes
- Standard single use mode or one time use mode (factory programmed)
- Audible alarm when incorrect code is entered 4 times
- Audible low battery warning when 200 cycles remain
- Standard Use – Enter a user code and it remains until re-set
- One time use – Enter a user code to lock and unlock only once
- Works in any application that has a standard keyed cam lock
e902
- 10-button electronic lock with simple touchscreen entry
- 1 to 15-digit user defined code
- Clutch Knob
- Two Versions: Standard use and one-time use
- Button cell battery with up to one year life (CR2032)
- Optional battery pack
- Audible alarm when incorrect code is entered 4 times
- Low power alarm – Audible signal sounds when 300 cycles remain
e903
- Advanced Electronic Cam Lock
- Mechanical lock override with magnetic cover plate
- Easily programmable codes: 1 master code, 1 sub-master code and 30 user codes
- Can be used on applications up to 3/4" thick
- 4- to 6-digit user defined code Standard use, single use (locker mode)
- Two operation modes available:
- 15,000 operations with 2 x AAA batteries (included)
- Housing: Zinc diecast with blackpowder coat
More Info: www.cclsecurity.com
