Secured Series PC Software Managed Access Control

The Secured Series Max 3 access system hardware with Hub Manager Professional software

is “access simplified”. The Max 3 is powerful and easy to install and program for small to midsized applications. The Max 3 system provides a secure and trusted access control system that

uses proven hardware architecture that is based upon the Secured Series HubMax II system.

System management from a PC can be either over a LAN/WAN connection or through a RS485

serial connection. All individual door access decisions and transaction events are stored at

the Max 3 Module.

The Max 3 Module is programmed via LAN, WAN, RS-485, MODEM or IR

using the Hub Manager Professional Software. The Max 3 system is available in two cabinet

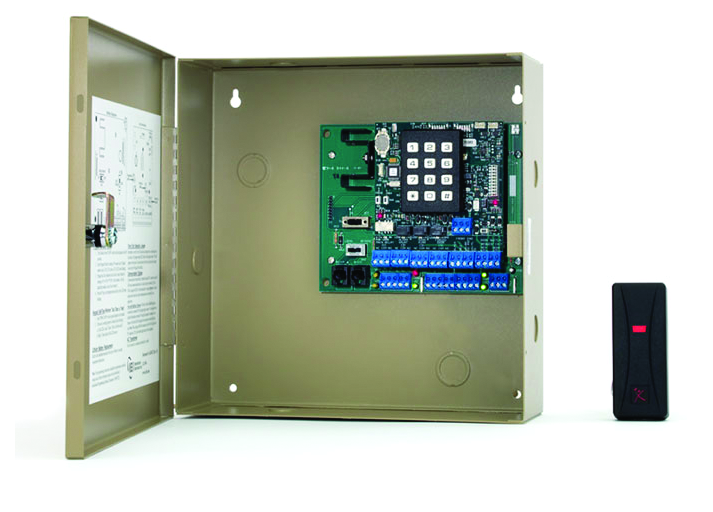

configurations – Max 3 and MiniMax 3. System expansion is made simple with the modular

design of the two available configurations. Up to 64 door modules can be networked together

per site with virtually unlimited sites.
