SECO-LARM Launches ENFORCER RF Receiver with Configurable Wiegand 26-Bit Input/Output

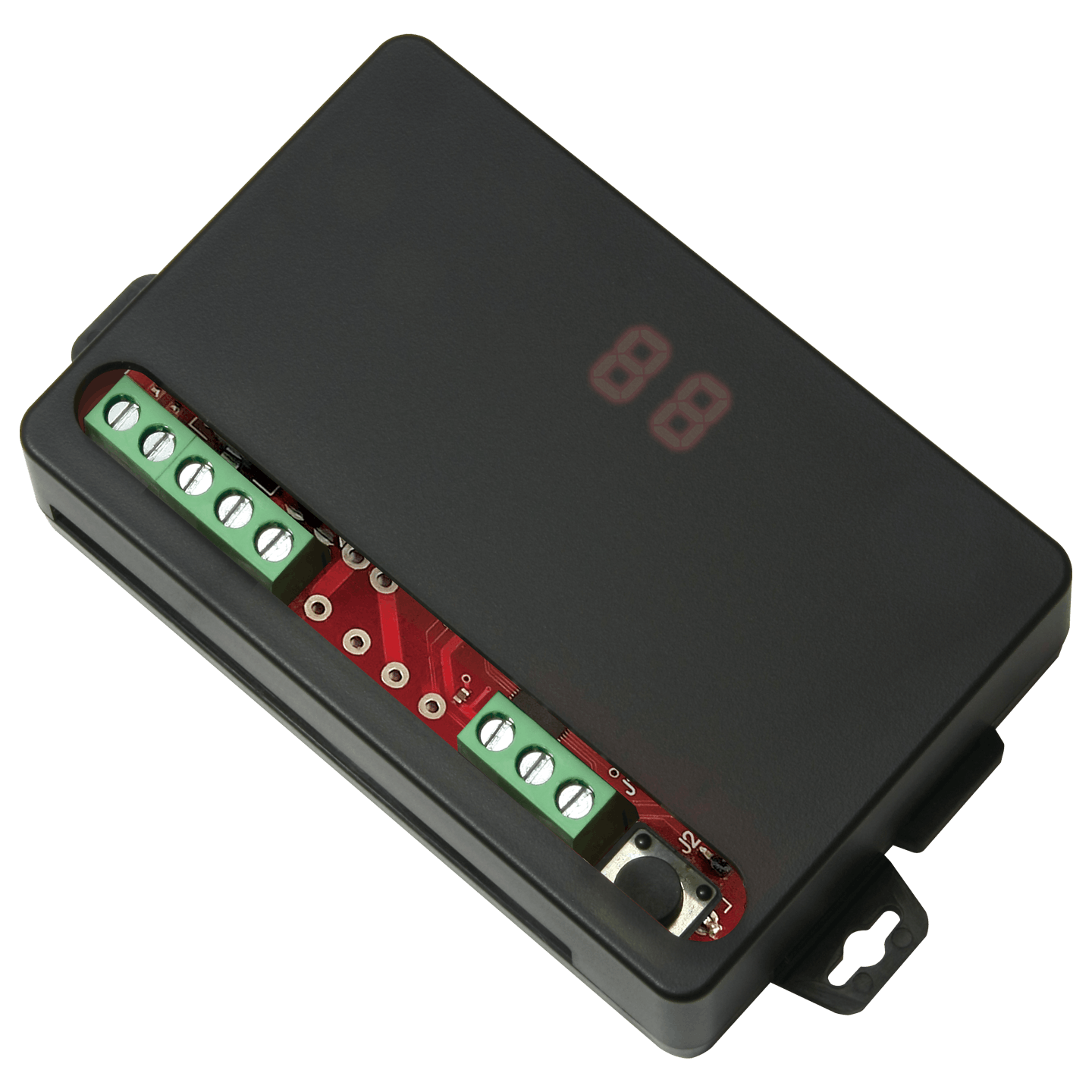

SECO-LARM, a leading innovator in security solutions, has released its new ENFORCER RF Receiver with Wiegand, Model SK-910RD1-W. This innovative 1-channel receiver not only features a versatile Form C relay output but also boasts configurable Wiegand 26-bit input or output.

The SK-910RD1-W is designed to seamlessly integrate RF transmitters with access control systems using the Wiegand protocol, making RF transmitters as easy to deploy as proximity cards. Its dual-frequency compatibility (315/433.92 MHz), combined with its Wiegand 26-bit selectable output or input and a Form C relay output, increases its versatility in a wide variety of access control applications.

Key Features:

• Programmable Wiegand 26-bit – configurable as input or output
• Includes 1 Form C relay output rated at 20A@14VDC (N.O.), 10A@14VDC (N.C.)
• Learns up to 240 RF transmitter or Wiegand device codes
• Supports momentary (0.5s–99s), momentary (1m–99m), toggle, latch, and follow (validity) output modes
• Dual-frequency support (315/433.92MHz) with optional extended range antenna
• Wireless range up to 500ft (150m), or 1,000ft (300m) with optional extended antenna
• Compact size: 4-3/16"x7/8"x2-3/8" (107x23x60 mm)
• Easy setup with 2-digit LED display
• Operates on 10~24 VAC/VDC, with low current draw

 More info: www.seco-larm.com
