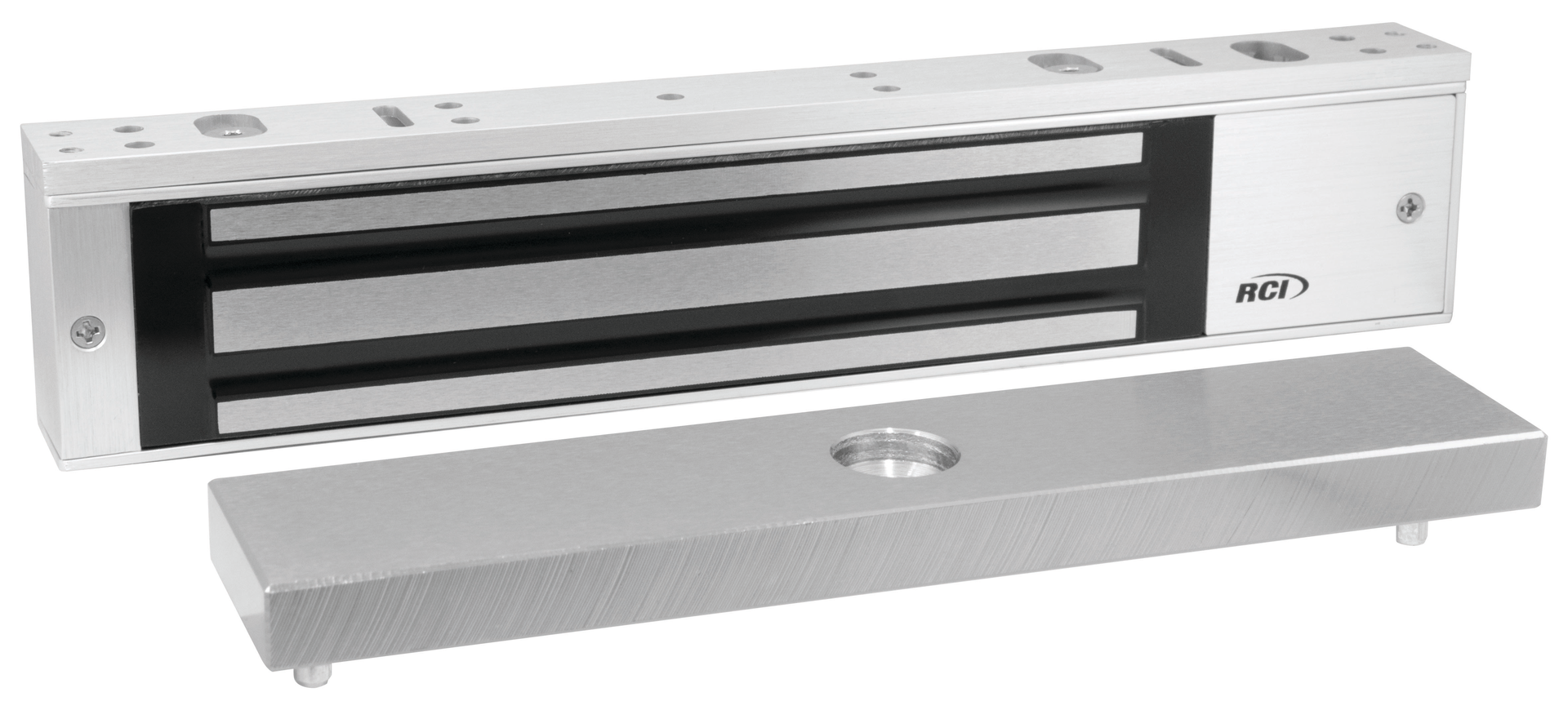

dormakaba RCI Surface MiniMag Locks

Aug. 2, 2022

dormakaba RCI Surface MiniMag locks are designed with a 1-7/8” width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 Surface MiniMag is for single outswinging doors. The RCI 8372 Surface MiniMag is used for double outswinging doors without mullions. These electromagnetic locks install alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.

Specific features include:

  • Stabilizing 4 bolt “drop stop” mounting
  • Keyhole mounting for ease of installation
  • Surge protection
  • Easy-access wiring cavity
  • 520mA Field-Selectable 12/24VDC (Max at 12VDC for 8371, 1.04A for 8372)
  • Up to 750lbf Holding Force
  • Lifetime Limited Warranty
  • Fail-Safe
  • CAN/ULC S104 UL 10C 1-Hour
  • Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available
