Seco-Larm Outdoor Stand-Alone / Wiegand Keypad with Proximity Reader

May 21, 2020

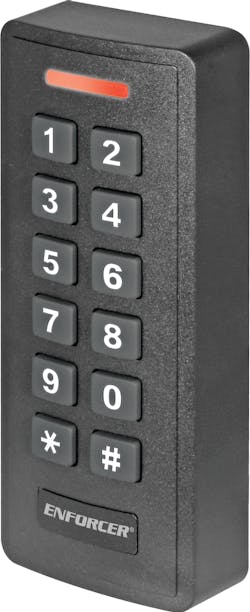

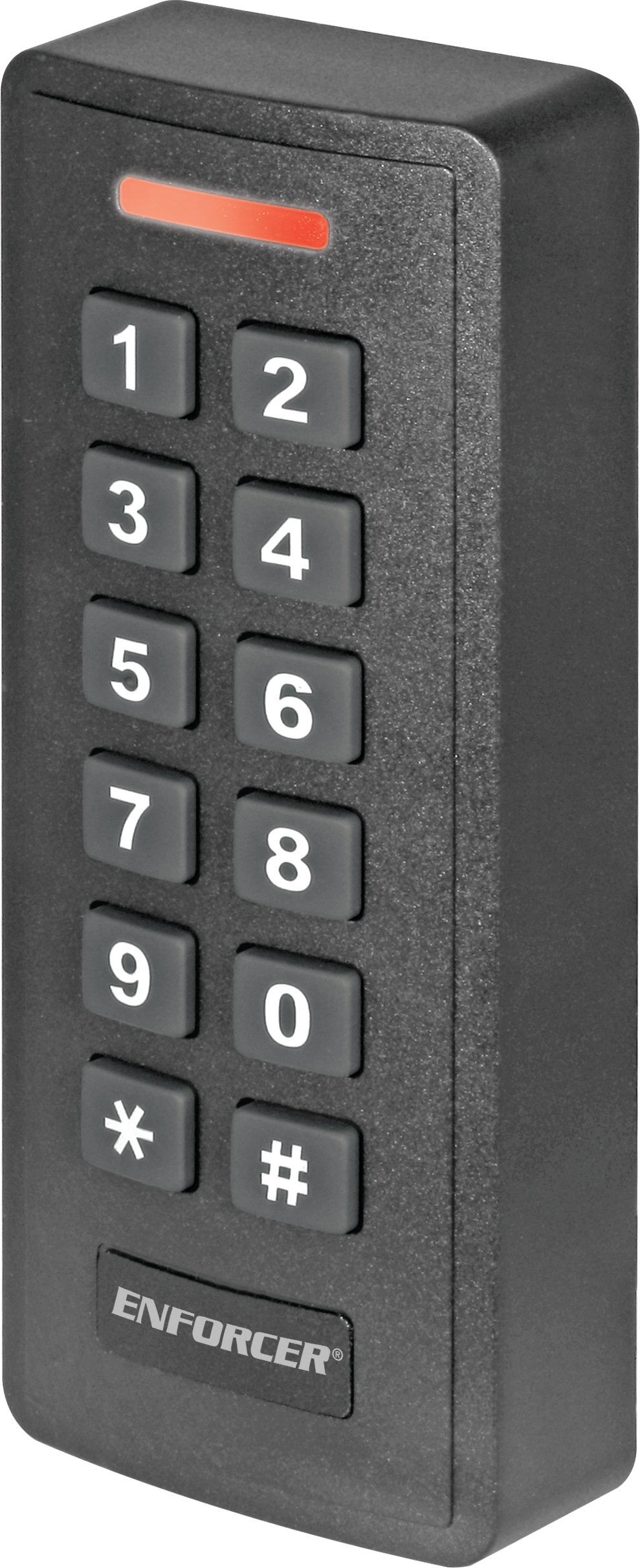

SECO-LARM U.S.A., Inc. introduces its Model SK-2612-SPQ outdoor stand-alone / Wiegand keypad with proximity reader. The SK-2612-SPQ supports 1,000 users (up to 998 users and two duress users) with user code lengths from 4~6 digits.

Additional features include:

  • 9~18 VDC Operation with a low current draw of 105mA max. and a Form C relay output 2A@12VDC.
  • Adjustable output time from 0.5~99 seconds, or can be set to toggle.
  • Easily transfer users to additional devices using Wiegand output.
  • Equipped with backlit keys, a multicolor status LED, built-in tamper alarm and external alarm (duress) output.
  • All features programmed directly on the keypad: No need for an external programmer. The egress input lets users exit the premises without a code/card.
  • Can serve as either Wiegand reader or controller, both output and input are selectable 26~37 bits.
  • Supports 2-Door interlock function.
  • Epoxy-filled black ABS plastic housing –Weather-resistant IP66, extreme cold tolerance to -40° F (-40° C).
  • EM 125kHz, Proximity cards (PR-K1S1-A) and Keyfobs (PR-K1K1-AQ) sold separately.
