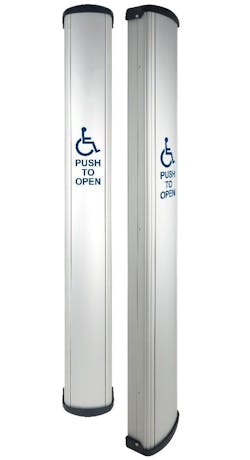

Camden Introduces 4-1/2” Wide Column Push Plate Switches
Camden has introduced a line of 4-1/2” (114mm) wide Column switches, available in a ‘top load’ model [(installed by assembling the switch on the wall vertically) or a ‘Side Load’ model (assembled by mounting the switch horizontally on the wall with six screws)]. The narrow size makes these switches less obtrusive and ideal for Restroom (privacy) control, particularly when multiple switches are mounted together.
CM-74 and CM-84 Series 4-1/2” wide Column switches are ADA, OBC, NBC, CSA, and CSBC compliant. They have a 3” (75mm) wide activation plate, are available in clear aluminum, black, bronze, and blue architectural finishes, and have a wide range of faceplate graphic options. There are also options for a built-in hands-free sensor, Lazerpoint battery power, and Kinetic no-battery wireless transmitter.
Column push plate switches offer greater convenience and a lower installation cost by providing a single activation device instead of two high/low switches, as required by a growing number of building codes.
More info: www.camdencontrols.com
