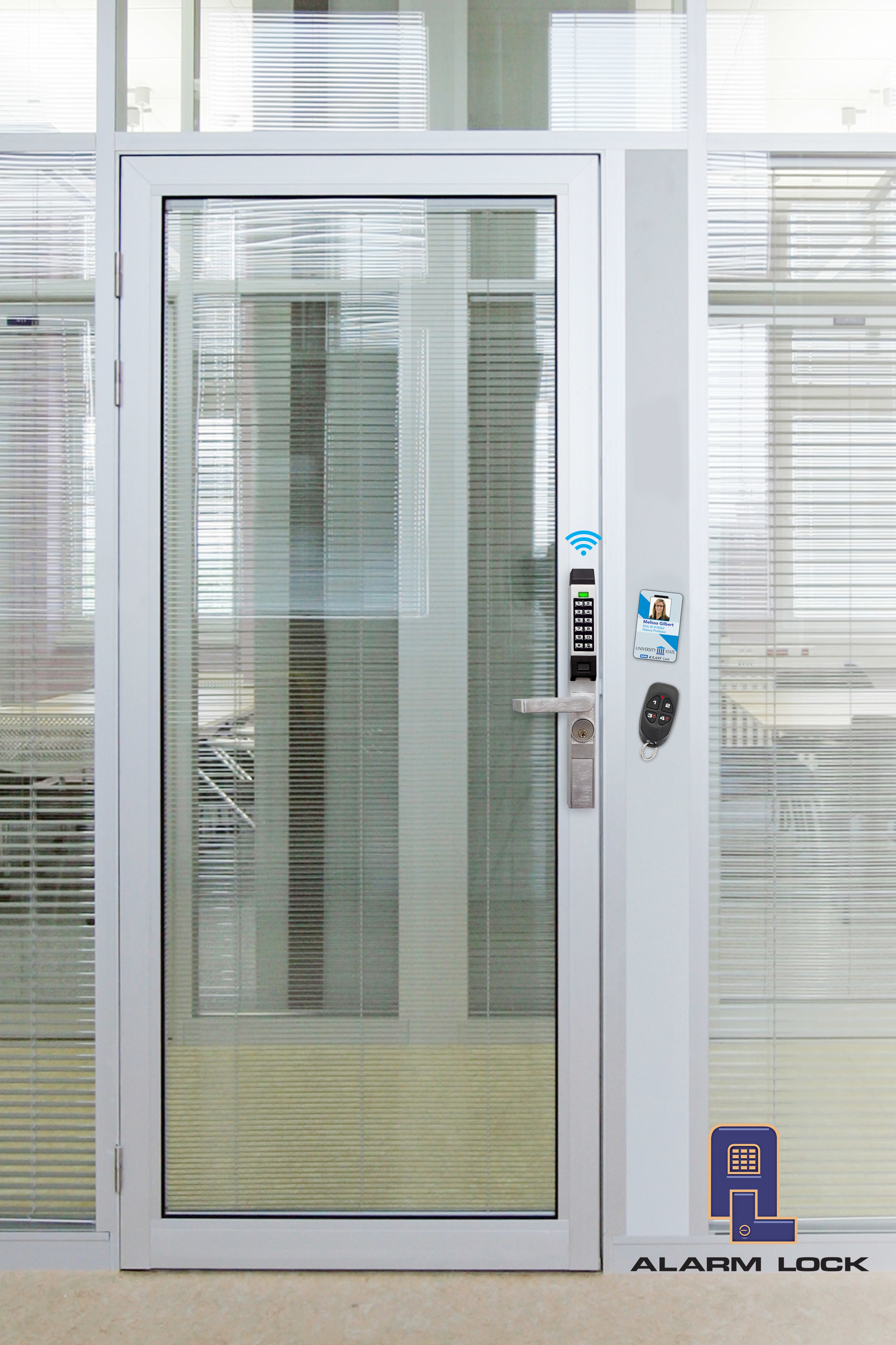

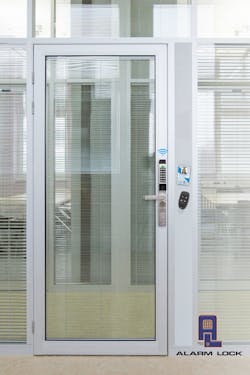

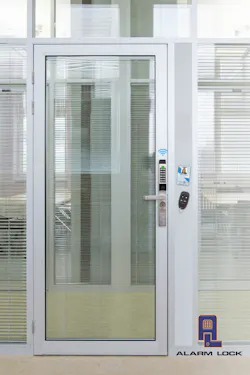

Trilogy® Networx™ Narrow Stile Wireless Access Lock Trim

Oct. 5, 2018

Amityville, NY – The Alarm Lock Division of Napco Security Technologies, Inc. introduces the new Trilogy® Networx Narrow Stile Wireless Access Prox/Digital Lock Trim, ideal for building management, professional offices, shared workspaces, classroom labs, retail stores and more. In an easy, trouble free installation, it adds Trilogy® keyless access lock convenience via PIN code or Prox ID, for up to 5000 users, anywhere there’s a glass door. Plus by customer request, it includes new keyfob support, for locking, unlocking and global network lock-down emergencies.

Trilogy® Networx Narrow Stile Wireless Access Lock Trim, P/DL1300NW, are weatherproof, all-metal and vandal resistant. Networked to save manpower, they offer automatic lock or free-passage scheduling to all Adams Rite® latch lock applications. Trilogy Networx locks communicate wirelessly via Gateways to Ethernet or 802.11B/G for a comprehensive wireless networked access control system, eliminating door-to-door programming and audit trail queries (35K), that can be auto-polled on schedule during non-peak hours, etc.  The PDL model includes a built in HID reader for easy use of existing or new proximity ID Cards. This also makes the PDL lock an excellent self-contained hosted access building management system, where the building manager’s access-managed clients are the users of the individual office suites he/she leases and maintains, providing a new service & RMR stream.

For equipment cost savings the PDL or DL1300NW models, use a choice of Networx Gateways, supporting 63 locks each, and multiple gateways can be used to support thousands of locks per system. Field-proven to be reliable and low-maintenance,Trilogy® Networx Narrow Stile Wireless Access Lock Trim offers unsurpassed battery life with advanced Power-Saver circuits, for years of use, even in high-traffic areas, powered by 4 standard AA batteries.  Available in US26D or US10B to match most doors, this advanced lock trim uses free DL-WINDOWS management software, and a 1-1/4” mortise rim cylinder, supplied.

More Info:  download spec sheet ALA522, or visit
