SDC’s WRC Series 2-Channel wireless transmitter/receiver solution is specifically designed to be used as a receptionist button or remote release for single- or dual-door access control applications. Receiver has the capacity to learn up to 30 fixed transmitter codes using the onboard learning button and status LED.
Series Features include:
- Transmits and Receives at 433.92MHz Frequency
- Transmitter operates with WRC-R2

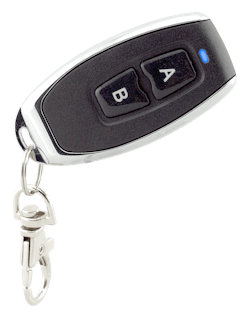

- Transmitter features Pendant Keychain type housing
- Receiver includes 12”, 8-Wire Pigtail for Quick InstallationPTHQ
- Capacity to learn up to 30 Transmitters codes per Receiver unit via onboard Learning Button and Status LED
4 field-selectable Operation Modes:
Timed (3s): Remote button “A” activates relay “A” for 3 seconds (fixed); remote button “B” activates relay “B” for 3 seconds (fixed). Both relays may be activated at the same time.
Toggle: Pressing remote button “A” activates relay “A”. Relay “A” remains active until remote button “A” is pressed again; Pressing remote button “B” activates relay “B”. Relay
“B” remains active until remote button “B” is pressed again. Both relays may be activated at the same time.
Manual (M) (default): Pressing remote button “A” activates relay “A”. Relay “A” remains active only while remote button. “A” is pressed; Pressing remote button “B” activates relay
“B.” Relay “B” remains active only while remote button “B” is pressed.
Latching (L): Pressing either remote button activates its respective relay. The relay remains active until the other remote button is pressed, activating its respective relay.
