Programming Guide: Standalone Electronic Locks

Standalone, single-door locks have evolved from single-code keypads to the electronic electromechanical devices available today.

Mechanical keys served as the earliest credential. These transitioned to keypad locks which had keyways, but also a mechanical keypad which was programmed with a single code. This type of lock is still in widespread use because they fulfill a requirement at an acceptable price point.

Mechanical keypads have evolved to devices which use keypads, proximity and smart credentials, and smart cards to control access.

When you are servicing standalones, you may have to perform programming. The majority of service issues with standalones involves mechanical and hardware failures and loss of battery power. Even if the initial service issue is caused by one of the above causes, you will probably have to at least partially dismantle the device to adjust components, repair components, or replace batteries. Then you may have to re-commission (re-program) the lock.

Your service call may be to remove a user, add a user, or change the main access code.

Our product showcase presents a selection of standalone products, explaining their features and benefits. On our website we present a collection of programming and product manuals for a wide assortment of standalones. Check out this new resource center at www.locksmithledger.com/12147489.

Some are products have been discontinued and are no longer sold, but you may encounter in your travels. The others are currently offered through professional locksmith distribution or through home centers.

These days, locksmiths generally do not turn down a service call if it involves a product they did not themselves install. As a matter of fact, market surveys reveal that unsuccessful DIYers are a growing market as they realize they have attempted to install and program a variety of security related products, and have bitten off more than they can chew. The phenomemon applies to mechanical and electronic locks, security systems and video surveillance products.

Our online guide addresses standalone locks, and will hopefully provide you with an easily accessible resource to obtain the product specs and programming steps you’ll need.

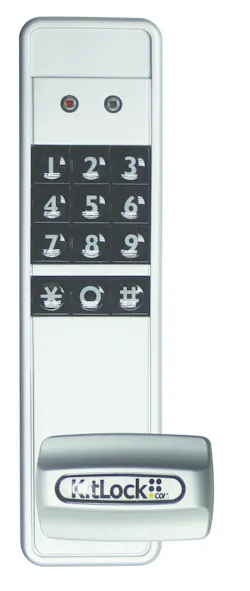

Codelocks KitLock 1550 SMART

Codelocks’ new KitLock 1550 SMART cam lock combines keypad and smart card access with the ability to set access codes from a remote location and manage through NFC-enabled tablet. It makes it faster and easier for operators to manage and control access to large numbers of lockers, cabinets or enclosures.

Based on its popular 1500 cam lock, the new KitLock 1550 SMART is a multi-purpose, multi-functional electronic digital lock with the ability to support many different forms of access.

As well as being used in its most basic form, i.e. programmed via the keypad and accessed using a four-digit code, the KL1550 SMART supports Private* and Public Use*, MIFARE-based smart cards and NetCode.

Using an NFC-enabled hand-held device (purchased separately), operators can upload selective programs and features, and download audit trail data on demand in a matter of seconds.

The KL1550 has four code levels available:

8-digit Master Code
8--digit Sub-Master Code
4-digit User Code
6-digit Technician Code

“Technology has enabled us to offer several access options in one product; via the keypad, smart card or iButton. It has also allowed us to cut down the time it takes to program and manage access permissions,” explains Grant Macdonald, President, Codelocks Inc. “Customers need flexibility and this lock, with the addition of smart cards and NetCode, is able to offer just that. Using the web-based NetCode portal, customers can issue time-sensitive access codes for temporary or one-off purposes via SMS or email.

“The functionality of the lock allows for many possible scenarios. For example, set Public Function* for short-term multiple occupancy applications and open the lock with either a code on the keypad or with a smart card. Issue NetCodes via SMS for one-time entry – this function is useful for service engineers when visiting remote cabinet enclosures. Issue up to 50 smart cards for access to storage used regularly by a small group of people, for example nurses accessing a medical cart in a hospital.”

Key Features:

Multiple Functions and Access Methods
12-button keypad
8-digit Master Code
8-digit Sub-Master Code
4-digit User Code
6-digit Technician Code
Penalty Time
Low Battery alert
Battery Override
Auto Unlock
Audible keypad
Dual code mode

Functions:

Private Use Function: Keypad and smart card options
Public Function: Keypad and smart card options
NetCode: Web generated codes as well as smart card options

ALARMLOCK ArchiTech Networx Locks

Alarm Lock ArchiTech locks have customizable architectural style on the outside and proven wireless Trilogy Networx Keyless Access on the inside - ideal for any decor, everywhere. Satisfy choosy designer and architectural tastes, in new and existing applications, with hundreds of choices of architectural trims & finishes; mortise and cylindrical lock styles and choice of prox ID readers, future-proof and ready to adapt to multi-credential technologies: HID Prox, Magstripe, Smart Cards, PIV.

Although they look great on the door, you don't have to go door-to-door for ID updates, programming/ schedule changes, audit queries - all can be securely made over the wireless network, on-demand or schedule. Enterprise and Standalone Network Models are available. Lower maintenance costs too: Durable BHMA Grade 1 hardware and unsurpassed battery-life, using AA batteries.

Features include:

• 5000 Users, 500 Scheduled Events & 40,000 Event Audit Trail

• Surface-Mount or Mortised-in Electronics and Battery Pack

• Lock available in Mortise and Cylindrical versions

• Automatic-Deadbolt option for automatic keyless  locking of deadbolt upon exiting, ideal for residential  applications

• Prox Reader can be incorporated into Decorative   Apartment Number Plate

• Real Time Clock

• Uses 4 AA Batteries – 3 to 4 year battery life using advanced Power-Saver circuit.

• Operated via access card, fob, key fob etc

• DL-Windows Software for programming

• USB Radio Gateway Method or Via Networx Gateways (Ethernet, 802.11 or POE)

• Manual Card Enrollment Option for Quick Installation

• Wireless programming range: up to 100 ft.

• Lifetime Mechanical

Specifications:

• ANSI / BHMA Grade 1 Certified, UL Listed 3 Hours

• Includes standard lever rose hardware design

• Compatible with all 300+ optional architectural trim / lever or knob designs

• Electro-mechanical button for ANSI F20 Function for  Apartment Entry

• Stainless steel latch, 2-3/4” backset

• Auto-Reverse lock body tested to 6 million cycles

• Lock Body - Self cleaning long life motor

• Door closure monitor / electronic deadbolt monitor

• Key override standard or high-security

• Optional integrated door position indicator switch

More Info: www.alarmlock.com

Adams Rite eForce®

The eForce 3090 Keyless Entry is a battery-operated keyless entry control for Adams Rite deadlocks, deadlatches, and exit devices that is compatible with aluminum stile, steel, and wood door applications.

The device can accommodate up to 150 users, including master, supervisor, and emergency users, plus two one-time codes.

The eForce 3090 can operate in three modes: Standard, Passage, and Lockout.

All programming is accomplished via the keypad. Device operation is confirmed by both a visual LED light indicator and an audible sound generated by a piezo horn.

Operation: In the standard mode of operation, a programmed 2 to 7-digit character followed by a star (*) key allows for one entry when used with Adams Rite deadlatches or exit devices. The MS Deadlocks must always be relocked manually when used with the eForce 3090. Hold open time is adjustable from 1 to 9 seconds.

Features include:

• Surface mounted with concealed fasteners ( 1-3/4” to 2-1/4” door thickness)

• Non-handed with clutched lever protection

• Key override via mortise cylinder ( 1” to 1 ½” length with MS® cam)

• UV stable keypad material

• Full outdoor rating: temperature range from -31°F to 151°F (-35°C to 65°C) and 5-95% humidity (non-condensing)

• Powered by 4 AA alkaline batteries; supports 60,000 activations

Specifications:

Housing: The sleek-looking 3090 eForce measures 1-3/4” wide x 15-3/8” high, with Satin Chrome (626) and Powdercoat Dark Bronze (121) finishes.

Handle: Clutch-protected cast zinc alloy, finished to match housing, field selectable handing.

Compatible Locking Devices: The 3090 eForce retrofits to Adams Rite MS® Deadlocks, 4500 and 4900 Deadlatches and 8000 Series Exit Devices in 31/32” backsets and greater. Additionally, the 3090 eForce-150 is compatible with Yale 7200 Series and Corbin Russwin ED4000 Series exit devices (check model number for availability).

More Info: www.adamsrite.com

Kaba PowerPlex 2000

PowerPlex 2000 is a self-powered, eco-friendly electronic lock that does not require batteries or other external power sources. PowerPlex offers an access control solution that helps meet sustainability initiatives by removing battery waste disposal. The lock generates its own power with every turn of the lever. Employing PowerStar™ technology, PowerPlex uses new super capacitor technology to store power longer and more efficiently.

Providing exterior access by PIN code while allowing free egress, PowerPlex is as reliable as a mechanical lock with the features of an electronic lock. The lock supports 100 user codes and records the last 1,000 events for increased accountability. Lock audits provide information, such as date, time, transaction description, user number, user access code/name, and user status.

PowerPlex is ideal for high security and restricted areas, such as IT, records or cash rooms. The lock also provides a unique feature: privacy. Once an access code is entered and access is granted into a room, the privacy latch can be thrown. This feature allows the room to be secured from the inside, and it does not allow other authorized users entrance into the room.

PowerPlex is BHMA Grade 1 Certified, making it a perfect choice for outdoor and remote locations. Its sealed unit and durable finish can withstand a broad range of climates. Additionally, as PowerPlex requires no batteries, the lock needs little to no service. PowerPlex holds a full charge for up to 10 weeks with no activity at the lock. And, if the lock is unused for long periods of time, a simple pump of the handle is all that is required to charge the unit.

Features include:

Electronic pushbutton lock (PIN only)
Self powered: charge lasts for up to 10 weeks
Simple installation — no wires to pinch or cut
100 access codes — 1,000 audit events, including the use of mechanical key override
Locking device options: cylindrical, mortise, and exit trim
Key override options
Non-handed, pre-assembled for left-hand door installations, easily changed in the field
Multiple user parameters: code length, anti-tamper lockout, and re-lock time
ANSI/BMHA Grade 1 Certified and ADA Compliant
Fire rating: UL 10C fire rated – Environmental: -31 ºF to +130 ºF
Three-year warranty

PowerPlex offers a simple upgrade path to electronic access control. The locks are easy to install. There are no wires. And, because these locks are standalone devices they can be replaced over time and as needed.

With an electronic lock, you gain additional features, such as audit trail, multiple user codes, and several authority levels, which helps increase security measures. PowerPlex lets you consolidate the functionality of both a mechanical and electronic lock into one lock. In addition, the E-Plex 2000 Series offers the same features as the PowerPlex 2000 Series, but requires batteries to power the unit.

PowerPlex provides the same exterior access with free egress as a conventional key locking system. However, pushbutton access control eliminates the costs associated with lost keys, key distribution, key management, and re-keying.

PowerPlex audit capabilities allow you to meet internal and external policies, such as HIPPA, for high-security areas, including

records room, hazardous waste storage, and IT room. With Kaba’s Excel®-based Standard Software (available via free download),

you can view the most recent 1,000 events, including the use of the mechanical key override.

More Info: www.kaba-adsamericas.com

Marks USA I-QWIK LITE

The i-Quik Lite is a standalone electronic lock from Marks USA. Features include:

• CableGardTM protects wires for easy installation

• Standard ANSI door prep with one additional hole

• Pre-programmed code

• Keypad programmable

• 160 User codes

• Temporary user codes

• Passage mode

• Pin only mode

• Double code entry for maximum security

• Two wire remote release

• 16-digit tactile metal keypad

• Durable black powder coat finish w/26D American levers

• Weatherproof standard

• Audible & visible entry indicator

• Audible low battery alert

• 4 “AA” batteries; 100,000 operations

• Easy installation

• Lifetime Mechanical Warranty; 2 Year Electronic Warranty

IQ1 LITE Cylindrical Lockset

Door Thickness: 1-3/4" standard; For thicker doors, Consult factory

Handing: Non-handed

Key Override: Marks “C” keyway, 6 pin w/2 keys, IC Core optional

Lock Body: Cylindrical “Survivor” featuring the “Clutch” for trouble free service

Latch: Grade 2, 2-3/4" backset, 1/2" throw, 3 Hour UL fire rating

Clutch: The “Clutch” for trouble free service

Strike Plate: 4-7/8" ASA strike

IQ2 LITE Mortise Lockset

Door Thickness: 1-3/4" standard;

For thicker doors, Consult factory

Handing: Field reversible

Key Override: 1-1/8" Mortise cylinder, 6 pin w/2 keys

Lock Body: Grade 1, Series 5, 2-3/4" backset,

3/4" anti-friction latch, 3 Hr UL fire rating

Auxiliary Latch: 1/2" throw

Bolt Throw: 1" (Optional deadbolt functions - Consult factory)

Clutch: The “Clutch” for trouble free service

Strike Plate: 4-7/8" ASA standard

IQ7LITE Rim Exit Device Interface

Door Thickness: 1-3/4" standard; For thicker doors, Consult factory

Handing: Non-handed

Key Override: 1-1/8" Mortise cylinder,

6 pin w/2 keys

Clutch: The “Clutch” for trouble free service

Adapter plates operate most manufacturers Rim Exit Devices.

Adapter plates for Mounting Exit Devices are sold separately

More Info: www.marksusa.com

Schlage NDE

Schlage’s NDE lock with ENGAGE technology opens the door to a new level of intelligence with visibility and control and transition from mechanical keys to electronic credentials with technology that’s easy to install, easy to manage and easy to use.

Schlage® NDE series wireless locks with ENGAGE technology are designed to fit into a standard cylindrical door prep, making it easy to upgrade without having to replace the door or modify the frame. Installation is complete in minutes using just a Phillips screwdriver, with no additional holes to drill or wires to run to the opening.

The NDE is the first from Schlage to feature a built-in door position sensor on the lock and strike plate, eliminating the time and cost to install and wire separate components. And since lever handing can be changed in the field in a matter of seconds, you can easily accommodate a left- or right-handed door.

NDE series wireless locks are powered by four AA batteries with a battery life of up to two years under normal usage.

NDE series wireless locks meet the highest industry standards for reliability and durability, including ANSI/BHMA A 156.25, ANSI/BHMA Grade 1, UL 294, UL10C, Industry Canada and FCC Part 15. They also meet ADA, RoHS, and LEED certifications

For basic standalone applications, the ENGAGE apps are used to manage locks, add and delete credentials and view lock history from anywhere. For applications where more advanced capabilities are required, the ENGAGE mobile app is used to configure and connect the locks to an access control alliance partner system.

Building IDs and NFC-enabled smart phone devices are common electronic credentials that work with ENGAGE technology.

Both proximity and smart credentials are held up to an electronic reader to initiate the validation process and gain access. For basic access control applications, either type of credential works. Note, however, that smart card technology is rapidly growing in popularity.

The ENGAGE™ Gateway is designed to be used with devices that feature ENGAGE™ technology, including Schlage® NDE Series Wireless locks, to deliver real-time networked connectivity with NDE Alliance Partner systems.

Each ENGAGE Gateway can support up to 5 wireless devices for a wide range of applications including interior suite entries, offices, conference rooms, sensitive storage areas and more.

Regular, frequent communication between the Gateway and linked ENGAGE™ enabled devices—like the NDE Series wireless lock—enable the Gateway to send commands such as lock, unlock and lock down from an ACP or IP host in real-time (commands are executed in < 5 seconds).

More info: http://us.allegion.com/Products/electronic_locks/engage

Schlage Sense Smart Deadbolt

Targeting the DIY market and on sale at Amazon and Big Box stores, Schlage’s new SenseTM Smart Bluetooth-enabled Deadbolt features Apple® HomeKitTM Technology, enabling integration with other home automation products. This is a product locksmiths may be called out to properly install after homeowner failed attempts.

Designed to work with Apple HomeKit, the Schlage SenseTM Smart Deadbolt allows users to control their door lock as part of their smart home. Apple HomeKit technology provides advanced security, with end-to-end encryption and authentication between the Schlage SenseTM Smart Deadbolt and an , iPad® iPhone® or iPod touch®. With an Apple TV®in the home, remote capabilities are possible.

Additionally, HomeKit lets consumers talk to unlock their Schlage SenseTM Smart Deadbolt using Siri® voice control.

“We are thrilled to announce the release of the Schlage Sense Smart Deadbolt into retail. This launch has been highly anticipated, as we continue to reimagine and develop innovative keyless solutions that integrate smart-home technology,” said Steve Down, Allegion residential leader.

The Schlage SenseTM Smart Deadbolt has the ability to manage and schedule up to 30 access codes through a dedicated, easy-to-use app. The Schlage SenseTM app allows individuals to create and delete codes, check on lock status and view activity, as well as update settings and check battery life without requiring a connection to an existing home automation system or a monthly subscription charge. The lock also gives homeowners the choice and flexibility of entering their home using the lock’s illuminated touchscreen or with their iPhone or even Apple Watch®

Staying true to Schlage’s dedication to creating quality products that complement consumers’ personal tastes, the Schlage SenseTM Smart Deadbolt is available in two styles, Camelot and Century, and in a variety of finishes, including Matte Black, Satin Nickel and Aged Bronze, to fit each home’s unique design aesthetic. Schlage says the Schlage SenseTM Smart Deadbolt is easy to install with a patented Snap & StayTM feature that makes most installations a one-person job and is simple to set up and program.

SDC EntryCheck

The SDC EntryCheck® E70 Series is an indoor/outdoor standalone electronic battery powered solution, providing controlled access for basic and multi-level high security requirements. The E70 Series locksets are keypad or PC software programmable, and combine multiple access technology with efficient motorized locksets.

Additionally, the E75 model allows the installer to use an existing Schlage electrified lever for a cost effective retrofit.

See http://sdcsecurity.com/E70-Standalone-Electronic-Locksets.htm for more complete product info)

E75K K version has keypad only.

E75P P version has keypad with Prox Reader

E75PS PS version features bluetooth enabled software.

E75 SCHLAGE can be retrofitted to existing prep for cylindrical locks. Distributor supplied lock,or motorized SCHLAGE lock with Athens trim and Dull Chrome finish supplied by SDC.

E76 includes SDC Mortise Lock

E77 includes SDC Rim Exit Device and Trim (SDC has Eclipse style and Galaxy style motorized trim)

Features include:

Keypad or PC Software Programmable
3,000 Users, 32 Temporary Users
4 to 6 Digit PIN Codes
3 Passage Mode Option
32 Access Groups, Schedules
32 Holidays
4 Authority Levels
Keypad Tamper Lockout
Mechanical Key Override
Battery Powered (4AA)
Blue Backlit Cast Metal Keys
Weather & Vandal Resistant
Retrofit Existing Lock Door Prep
Motorized SDC Cylindrical Lockset
Heavy Duty ANSI Grade 1
Vandal Resistant Lever Clutch Mechanism

Yale Real Living Series

The emergence of the digital home is a major catalyst for the creation of the Yale Real Living™ portfolio of residential access control and home security solutions. These deadbolt and lever locks are designed to integrate seamlessly with digital control systems or provide convenient stand alone access control.

The Model YRD240 Key Free Deadbolt is a keyless entry lock that offers voice-guided programing in multiple languages, a weather resistant touchscreen. Available with an acrylic touchscreen or pushbutton keypad. The absence of a cylinder provides a clean appearance and makes lock picking or bumping virtually impossible. No need to ever re-key.

Grade: Grade 2: A156.36 ANSI/BHMA

Keypad Type: Touchscreen or Push Button Keypad

Finish: Polished Brass, Satin Nickel or Oil Rubbed Bronze Permanent.

Batteries Required: 4 AA Alkaline Batteries included.

Door Specs: 2 1/8" Face Bore, 1" Edge Bore, 2 3/8" or 2 3/4" Backset

Latch Front: RC (Round Corner)

Door Thickness: 1 3/4" to 2 1/4"

Strike: 1 1/8" x 2 3/4"

Strike Front: RC (Round Corner)

Cylinder: NA

Keyway 1: NA

Number of Keys: 0

Lock Dimension: Exterior 1 1/8" L x 2 3/4" W x 5 1/2" H Interior 2 1/8" L x 3" W x 6 7/8" H

Weight: 4.5 lbs

Package Length: 9.75"

Package Height: 9.125"

Package Width: 3.625"

Warranty – Finish: Lifetime Limited Warranty

Warranty – Mechanical: Lifetime Limited Warranty

Electronic Warranty: One Year

The YRD210 Push Button Deadbolt is a keyless entry lock with key override. It is programmable for up to 25 users with an illuminated

The YRD220 Touchscreen Deadboltkeyless entry lock with key override features a durable acrylic touchscreen. It isrogrammable for up to 25 users with ulti-language voice-guided programming.

The YRD120 Touchscreen Deadbolt T1L is a keyless entry lock with the smallest residential keypad and acrylic touchscreen. The absence of a cylinder provides a clean appearance and makes lock picking or bumping virtually impossible. Features include fast Z-Wave enrollment, universal lock and program symbols, no need to ever re-key.

Finish; Polished Brass, Satin Nickel or Oil Rubbed Bronze Permanent.

Grade; Grade 2: A156.36 ANSI/BHMA

Door Specs; 2 1/8" Face Bore, 1" Edge Bore, 2 3/8" or 2 3/4" Backset
Latch Front; RC (Round Corner)
Door Thickness; 1 3/4" to 2 1/4", 1/3/8 " requires special thin door gasket
Strike Front; RC (Round Corner)
Cylinder; N/A
Keyway 1; N/A
Number of Keys; N/A
Weight; 4.5 lbs
Package Length; 5.5"
Package Height; 9.13"
Package Width; 5.5"
Warranty – Finish; Lifetime Limited Warranty
Warranty – Mechanical; Lifetime Limited Warranty

The YRD110 Push Button Deadbolt B1L is another keyless entry lock with the smallest residential keypad. Features include Fast Z-Wave enrollment, universal lock and program symbols, no need to ever re-key.

More Info: http://www.yaleresidential.com/en/yale/yaleresidential-com/residential/yale-real-living/push-button-lever-lock/
