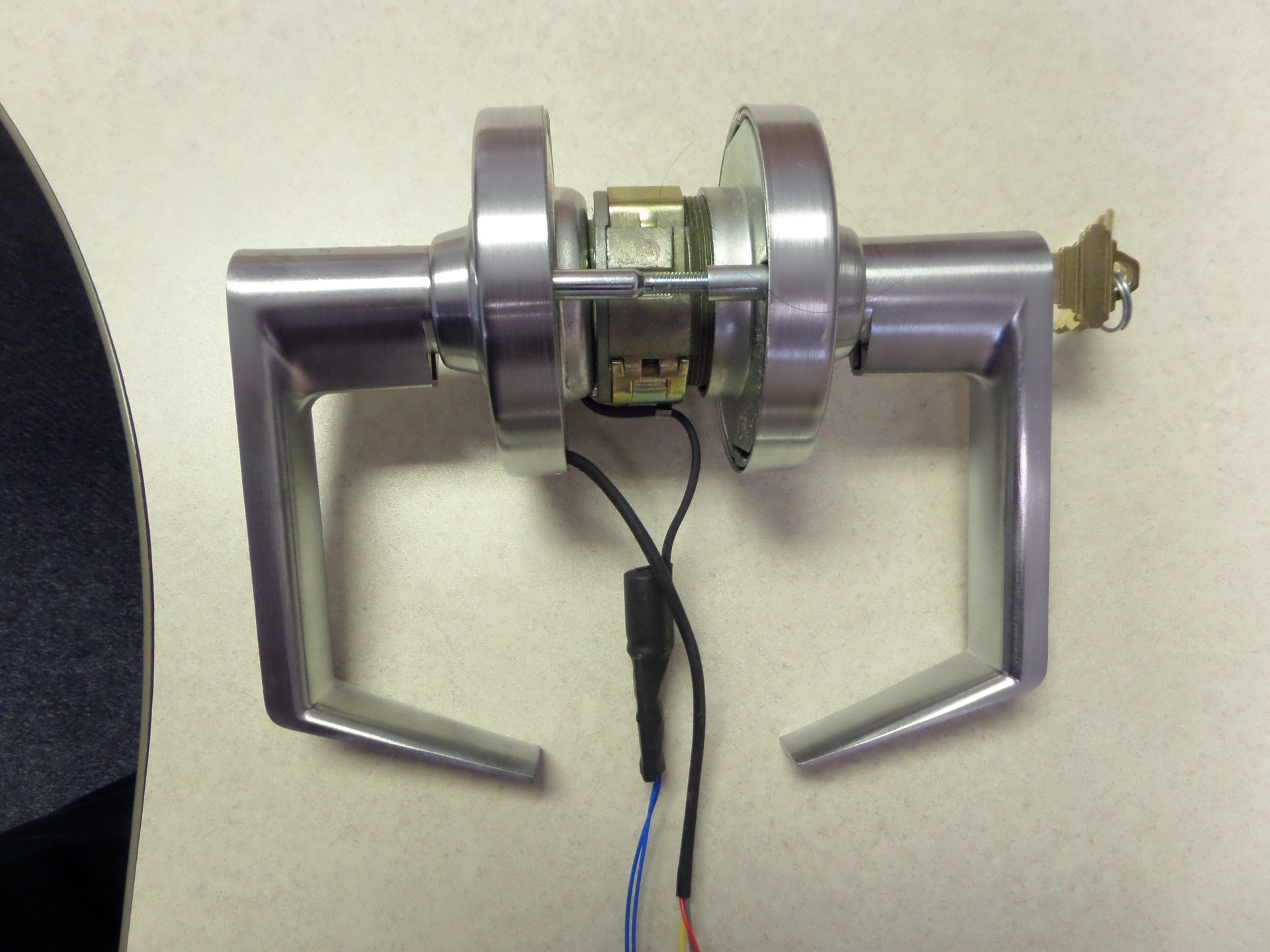

Electrified hardware is designed to perform special functions not possible with standard mechanical locking systems. As usage of electronic access control increases, the demand for electrically controlled locks is also increasing. Architectural Control Systems, Incorporated (ACSI) meets these requirements with their product line of electrified hardware.
ACSI 1500 series electrified products were submitted for review. 1500 series locks include ACSI specializes in modifying lock hardware made by popular lock manufacturers. The list of supported manufacturers includes Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks USA, PDQ, Sargent, Schlage and Yale. Modifications are UL listed and are designed to secure stairtower doors or controlling areas where both locking and latching are required while conforming to life-safety codes.
1500 series locks can be set in fail safe or fail secure modes.
FAIL SAFE 1510 function: Outside trim is locked when power is applied. Outside trim is unlocked when power is removed. Lockset will unlock in event of power failure.
FAIL SECURE 1520 function: Outside trim is unlocked when power is applied. Outside trim is locked when power is removed. Lockset will lock in event of a power failure.
1500 series locks contain SPDT switches for field-selection of fail safe or fail secure operation. Switches in Mortise locksets are accessible after removing the armor front plate. Switches with cylindrical locksets are located in-line with wires leading to the power supply. Authorized Egress, Optional switches are available for monitoring the operation of inner trim such as for Request to Exit (REX), activating a door alarm or controlling an electromagnetic lock. Other switches are available for latch bolt monitoring.
Continuous duty solenoids are used. Voltage: 12-24V AC/DC (11V-30V). Current: 250mA MAX inrush, 10mA holding. The latch may be momentarily retracted with a key even though the lockset is electrically locked. Note: locks which are electrically unlocked may not be locked via the key cylinder. Additional ACSI products include electric hinges and pivots, power supplies, electromagnetic locks and door control accessories.
Electrified 1500 series by ACSI provides a simplified solution when retrofitting a mechanical locking system to electronic access control. For more information contact: Architectural Control Systems, Inc, 800-753-5558, www.acsi-inc.com
Manufacturer Mortise Locks Cylindrical Locks Unit Locks
Accurate 9100
Arrow A17,B17,AM17,BM17h12,Q12
Baldwin 6065,6065LS
Best 34H7J, 35H7J
Corbin Russwin 2055 3357 UT5257
Falcon ML561
PDQ MR115 GT115
Sargent 7737,8237 10G04
Schlage L9050, L9070,L9080,9453 D80,D53,D94,ND80,ND94
Yale 8708
Manufacturer |
Mortise Locks |
Cylindrical Locks |
Unit Locks |
|
|
|
|
Accurate |
9100 |
|
|
Arrow |
A17,B17,AM17,BM17h12,Q12 |
|
|
Baldwin |
6065,6065LS |
|
|
Best |
34H7J, 35H7J |
|
|
Corbin Russwin |
2055 |
3357 |
UT5257 |
Falcon |
ML561 |
|
|
PDQ |
MR115 |
GT115 |
|
Sargent |
7737,8237 |
10G04 |
|
Schlage |
L9050, L9070,L9080,9453 |
D80,D53,D94,ND80,ND94 |
|
Yale |
8708 |
|
|
